Most Bench Seat Models 2015-2024
Please Measure by Jacking Up the Frame
to Unload the A-Arm and Wheel
HiSUN, AXIS, Coleman, Cub Cadet

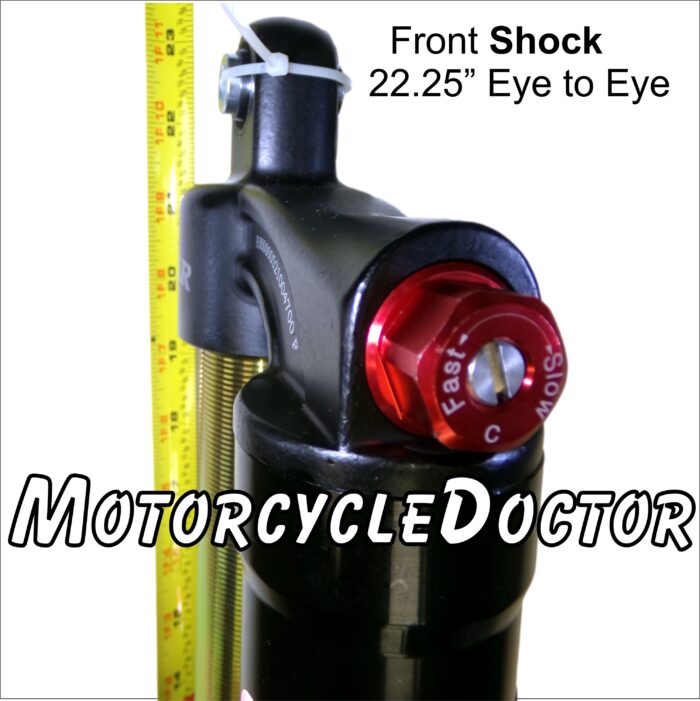

22 1/4” in Length from Center EYE TO EYE and Has 10mm Bushing Bolt Holes

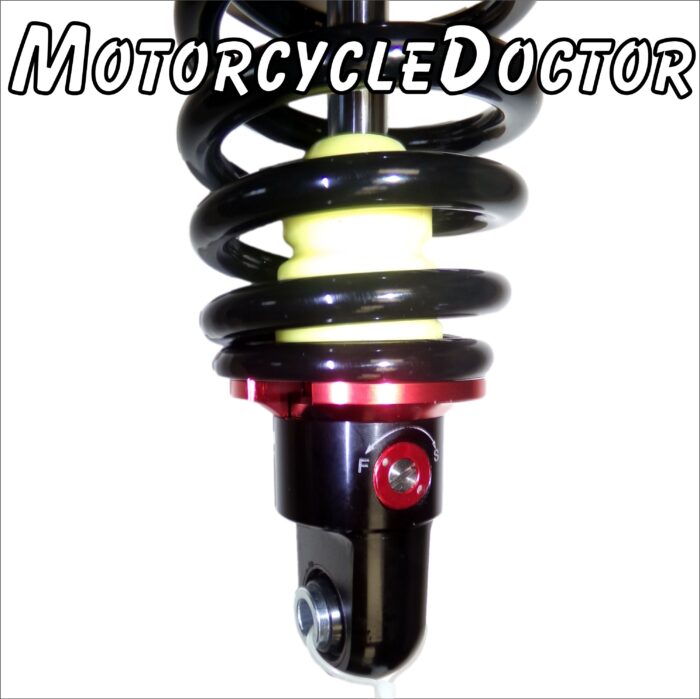

This shock can be Adjusted in Dampening from very little Resistance (Fast Movement) to
Lots of Dampening (Slower Movement) by simply turning the Compression and Rebound Screws.

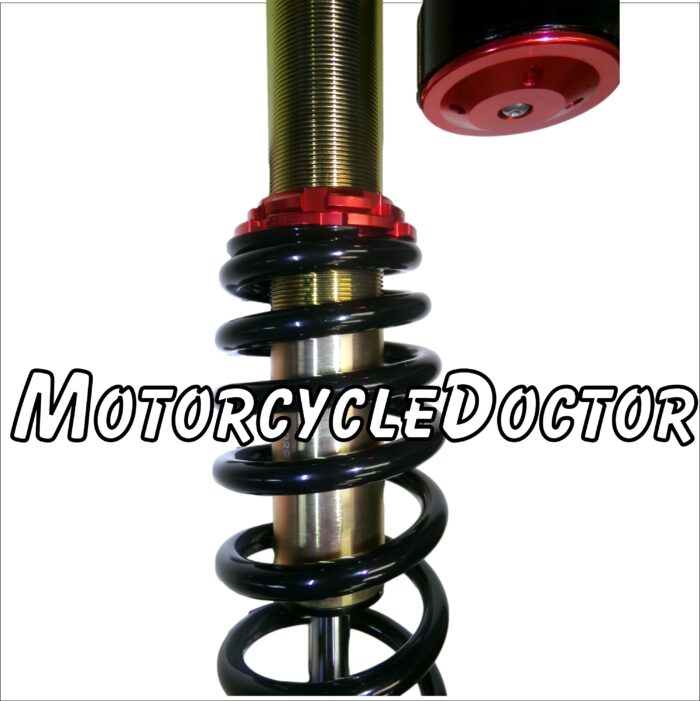

This Shock also has a very large Preload Adjustment due to the Long Threads avalible.
For heavy loads increase the spring Compression or Loosen the Collar Ring Nuts for Lighter loads.

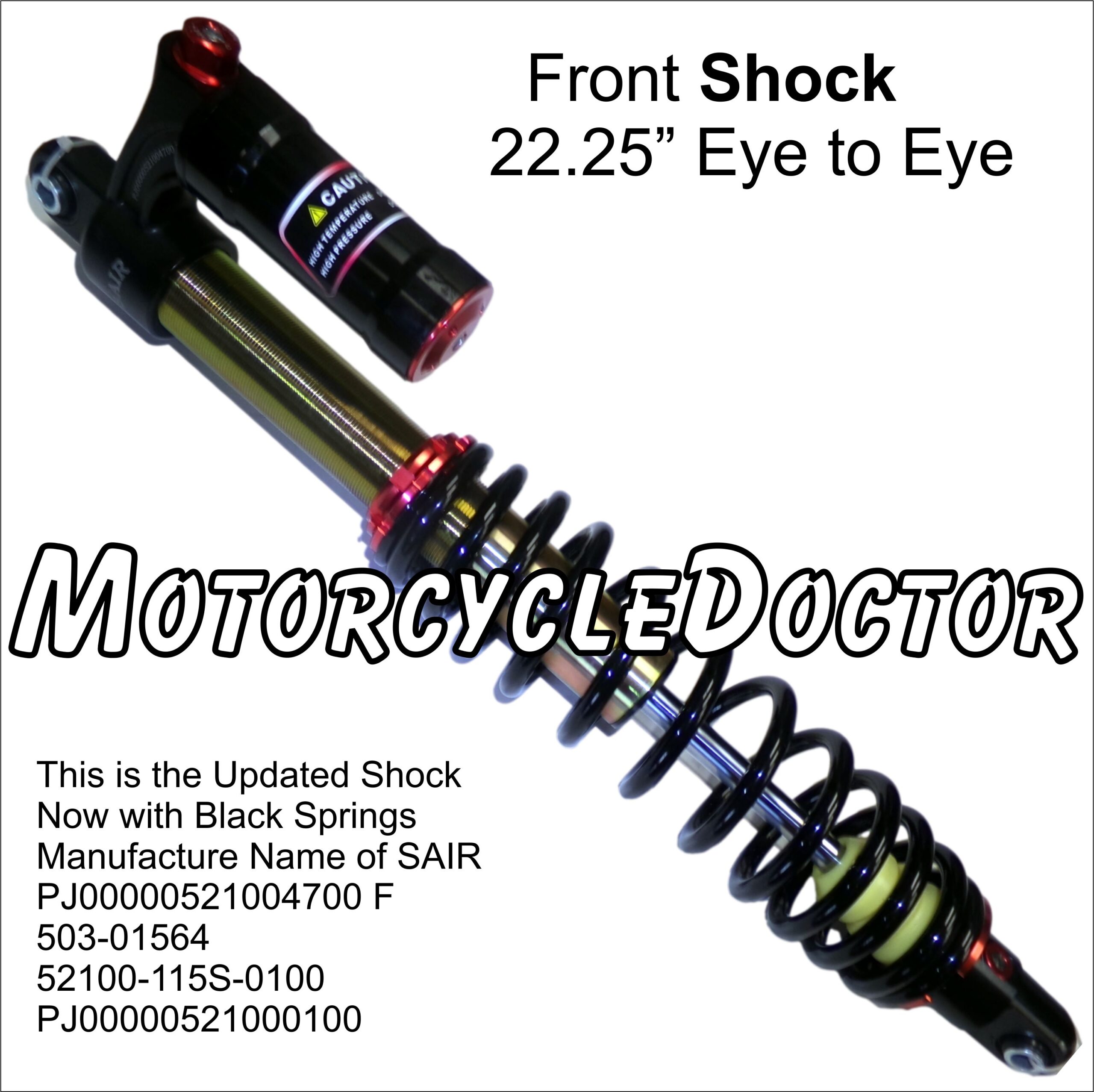

Approx. 22 1/4″ Length, eye hole to eye hole
